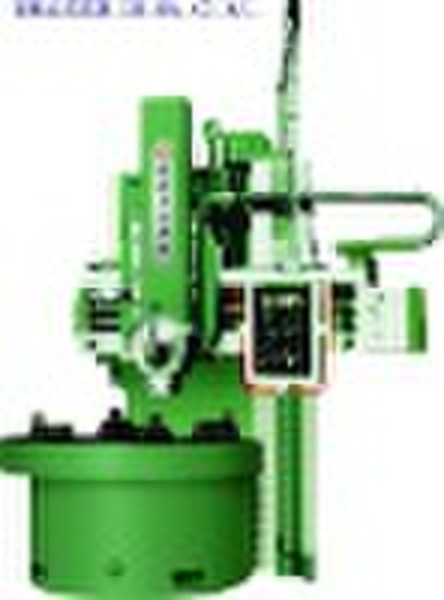

single column vertical lathe

The machine tools of this series are applicable for mechanical processing of various industries. They can be used to realize the coarse and fine turning of inner and outer cylinder surface, taper surface, end surface, cutting channel and cutting etc. This machine is beautiful in appearance and easy to operate. Major specifications and parameters: C5112AC5116AC5120Diameter of workbench 1000mm 1400mm 1800mm Max. cutting diameter 1250mm 1600mm 2000mm Max. height of work piece 1000mm 1000mm 1250mm Revolution speed range of workbench 6.3200rmin¹ 5160rmin¹ 3.2100rmin¹ Grades 161616scope of feeding quantity 0.886mmmin¹ 0.886mmmin¹ 0.886mmmin¹ Grade 121212Travel of vertical cutter holder (horizontal) 700mm 915mm 1115mm Travel of vertical cutter holder (vertical) 650mm 750mm 750mm Travel of side cutter holder (horizontal) 600mm 600mm 600mm Travel of side cutter holder (vertical) 900mm 900mm 1150mm Travel of beam 650mm 650mm 890mm moving speed of beam 440mmmin¹ 440mmmin¹ 440mmmin¹ respective speed of vertical and side cutter holder 1800mmmin¹ 1800mmmin¹ 1800mmmin¹ movement amount of vertical cutter holder upon 1 revolution on scale 6mm 6mm 6mm movement amount of side cutter holder upon 1 revolution on scale 3mm 3mm 3mm movement amount of vertical and side cutter holder upon 1 revolution on scale 0.05mm 0.05mm 0.05mm max. size of cutter handlemm 30×40 30×40 30×40 power of main motor 22kw30kw30kwrevolution speed of main motor 1470 rmin¹ 1470rmin¹ 1470rmin¹ power of feeding motor 1.3/1.7kw1.3/1.7kw1.3/1.7kwrevolution of feeding motor 940/1440 rmin¹ 940/1440 rmin¹ 940/1440 rmin¹ weight of machine tool 8T12T17T
